Overview
The GIK Acoustics Evolution PolyFusor© is a combination of a polycylindrical sound diffuser and an absorber merged into a single unit. Polycylindrical diffusors, polyfusors, or also known as poly acoustic diffusers are well-known for their excellent dispersion characteristics over a very wide range. The curved front plate of the Evolution PolyFusor© allows for virtually perfect spatial diffusion, while simultaneously allowing lower frequency waves to pass through to the cavity of absorption behind.
The Evolution PolyFusor© provides a great mix of absorption and audio diffusion capabilities. Polyfusors offer a wider band of spatial diffusion than a typical quadratic residue diffuser, but do not affect the phase of the incident sound. Thus the Evolution PolyFusor© is best suited to spreading mid and high frequencies out in a room.
For more information on using acoustical diffusion, read our article “Diffusion is a Wonderful Tool” by Jeff Hedback.
Specs
Design
A strong base frame and thin curved front plate which is filled with rigid rock mineral wool absorption material:
Polycylindrical shape
Thin wood front plate
White, black, or Blonde wood end caps
Standard Size
600mm x 1200mm
155mm
Shorter sizes available
Weight
9 kg
NRC
1.05 (versus foam products where NRC = 0.4)
Usage
The Evolution PolyFusor © is a diffusor absorber as it smoothly transitions as a bass trap from 80Hz, to upper-bass/lower-mid scattering device, to diffusor. Starts diffusing at 600Hz.
Thin wood poly diffuser lets low frequency waves in for low end absorption
The polycylindrical diffuser provides a great mix of absorption and sound diffusion capabilities. Polyfusors offer a wider band of spatial diffusion than a typical quadratic residue diffusor, but do not affect the phase of the incident sound. Thus the Evolution PolyFusor© is best suited to spreading mid and high frequencies out in a room.
Construction

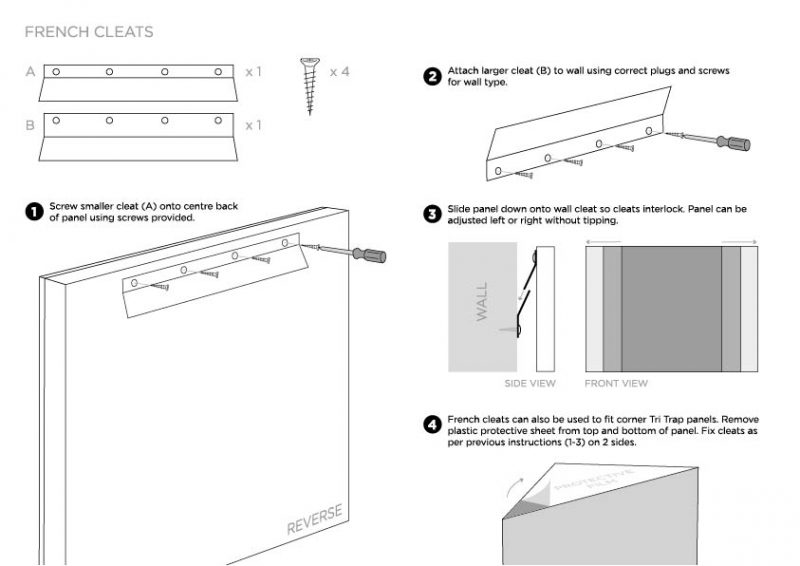

Easy wall and corner installation using wire integrated in the back like a picture frame
Class A fire rated – Click HERE for Fire Rating test results
Greensafe technology absorption material
Purebond formaldehyde-free technology
Quality hand-made construction and craftsmanship
Applications
Placement Ideas
The Evolution PolyFusor© diffuser absorber is an attractive choice for a room where mid and high frequency chaos needs to be controlled but not removed. PolyFusors offer a wider band of spatial diffusion than a typical quadratic residue diffusor, but do not affect the phase of the incident sound. Thus the Evolution PolyFusor© is best suited to spreading mid and high frequencies out in a room.
In a control room
the Evolution PolyFusor can be used on the front and back walls, and rear sidewalls to keep the reverberation better mixed.
In home theater and two-channel audio rooms
the Evolution PolyFusor can be utilized on the rear or sidewalls, or behind dipole speakers, to round off sharp reflections.
Our polycylindrical diffuser / absorber combination is also right at home anywhere in a tracking room or other large spaces, helping spread out the energy evenly across the whole room. Similar to our bass traps, the Evolution PolyFusor can be used in corners for enhanced low frequency absorption.
Poly diffusers can be wall mounted, free standing or stacked. The PolyFusors are Ideal on the front wall or rear wall of control rooms, or on the rear sidewalls
Similar to bass traps, polycylindrical diffusers can straddle corners for enhanced low frequency absorption
GIK Acoustics Evolution PolyFusor
Click for the PolyFusor Wall A-Mount Full Test Results
Click for the PolyFusor Corner J-Mount Full Test Results
As part of their internationally renowned acoustics measurement facility, the University of Salford’s Acoustic Test & Calibration Laboratory provides an independent, service for acoustic consultancies, local authorities, construction, product design and other acoustic-related industries.
