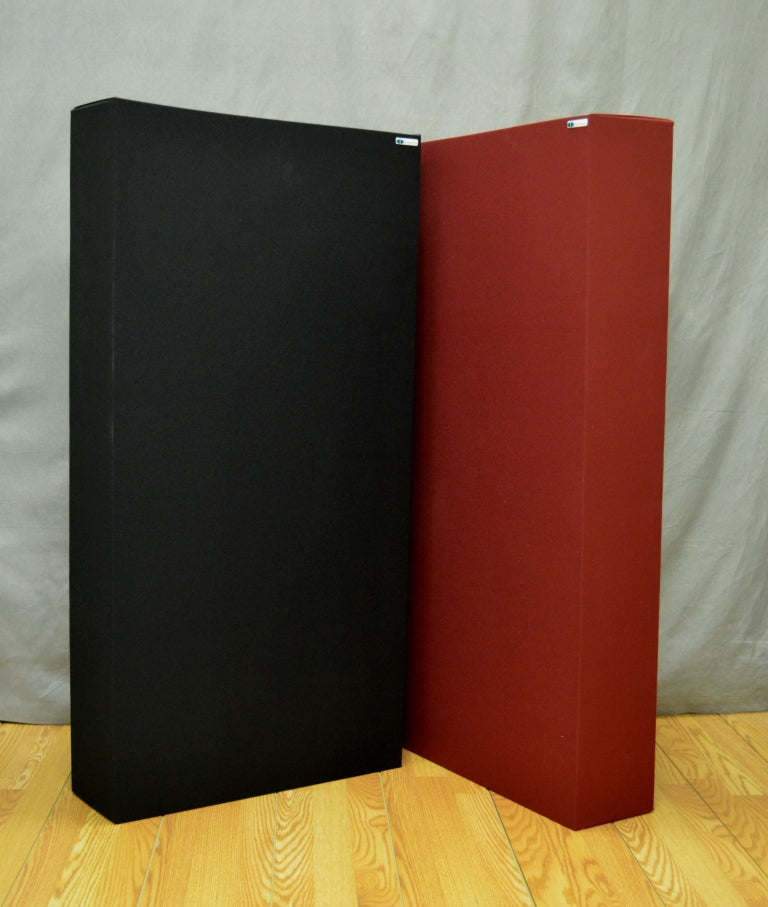

Do-It-Yourself Acoustic Panels and Bass Traps… To Frame or Not to Frame
Often people decide to build their own acoustic panels and bass traps for reasons ranging from budget restraints to entire custom-sized setups.
Before purchasing DIY supplies, it’s best to start with a plan of attack for how your acoustic panels and bass traps will be constructed. There are tons of how-tos on building acoustic panels, so we won’t rehash old information. Instead, this article looks to analyze one of the biggest questions surrounding panel construction: what is the difference between panels constructed with and without frames?
Building DIY acoustic panels and DIY bass traps without frames can be beneficial for a few reasons. Constructing them without wood can save money and can make for less hassle if you don’t have the correct tools to work with. However, without frames, panels will have a “pillowy” look and can sag over time. And with nothing to attach screws, clips, or wire, they can be more difficult to mount.
Building DIY acoustic panels and DIY bass traps with frames along the outside can help retain longevity of the panels, provide easy mounting points, and give straight clean edges around the sides of your panels. Even though constructing acoustic panels and bass traps with frames will increase your cost of materials and take more time to construct, it’s a worthy endeavor just to keep the place looking good.
The biggest question left to answer is whether there is an acoustic benefit for choosing whether panels should be built with open or closed sides. Many people feel there is a large benefit to exposing the sides of a standard sized 24” x 48” x 4” panel as this will increase the absorptive surface area by 50% – and even more if the panel is thicker. You can also expect less diffraction losses (where the sound wave will wrap around the panel) and you could of course expect that any sounds coming straight into the panels from the sides will now be absorbed instead of reflected. But how much of a difference can you actually expect?
We carried out a few different tests in the GIK Acoustics testing room. We conducted tests on five 24” x 48” x 4” absorbers – both with and without frames – on the floor in the test room. We also tested the absorbers placed in the four corners of the room and ran tests – with and without frames – to see if there were any changes in the low end due to possible diffraction differences. Note this wasn’t a test with our standard products or construction methods, but a comparison between two different DIY approaches.
The “no frames” panels were constructed with two sheets of Owens Corning 703 together, and the “panels with frames” were made with Owens Corning 703 and a ½” wood frame around the top, bottom, left, and right sides. Neither were covered in fabric for the tests, though this would not effect the comparative difference between the two.
First, we took a look at the reverb time in the room. As you would expect, the panels without the frames do give a slight increase to overall absorption, from roughly 500 Hz to 3 kHz, though not as much as some would expect given a 50% increase in surface area.
We also looked at the reverb time differences for the corner panels. There was a much smaller difference here. This is more easily anticipated, as not much additional sound really has a chance of being absorbed.
The ETC graphs show reflections over time, ignoring frequency. Notice that in the first 20 milliseconds or so (the early reflection window), there isn’t much of a difference between frames and no frames and also notice that the difference becomes slightly larger down the line.
Lastly, we illustrate the difference in low end absorption between frames and no frames straddling the corner in an overlayed waterfall graph. There is really no significant difference for bass traps with or without frames for frequencies under 400 Hz.
The easiest analysis of the differences between the two methods comes from the ETC measurement. We can see that the early energy is hardly effected, while there is more late energy absorption with panels without frames. This means that for panels in the first reflection zones in the room, there shouldn’t be any difference in building them with either method. This is trivial even without measurements, as the sound coming into first reflection areas will be coming into the panel at a large angle of incidence – definitely not coming into the sides of the panels [if they’re placed correctly]. See our video on First Reflection Points.
From the ETC we can also easily conclude that the reverb time would be slightly shorter, as reflected in the reverb time graphs. And again, the waterfall graphs illustrate that there is no real difference in the low end between corner bass traps built with or without frames.
We can conclude that the only real difference between constructing panels with and without frames is for late arriving sound that would otherwise reflect off the sides of the panels, parallel to the walls, floor, and ceiling. For small acoustical spaces – like home theatres, tracking rooms, control rooms, and residential sized spaces – these late reflections are not necessary to treat. Late arriving reflections normally do not cause any large problems at listening position in response like early reflections or standing waves do. For large rooms – like auditoriums and halls, where absorbing reverberation is critical – these differences will likely be more important, but more tests conducted in a larger space would be necessary to confirm any suspicions.
Our advice on the matter? Constructing an extra panel or two is going to make a much larger difference acoustically than worrying about making them with or without frames. Get building! From absorption material to fabrics, GIK has your DIY needs covered.
